Fully 3D OpenFOAM Software Simulations
At Polydynamics we use OpenFOAM (www.openfoam.org) frequently. Some screenshots of our computer simulations are shown below.

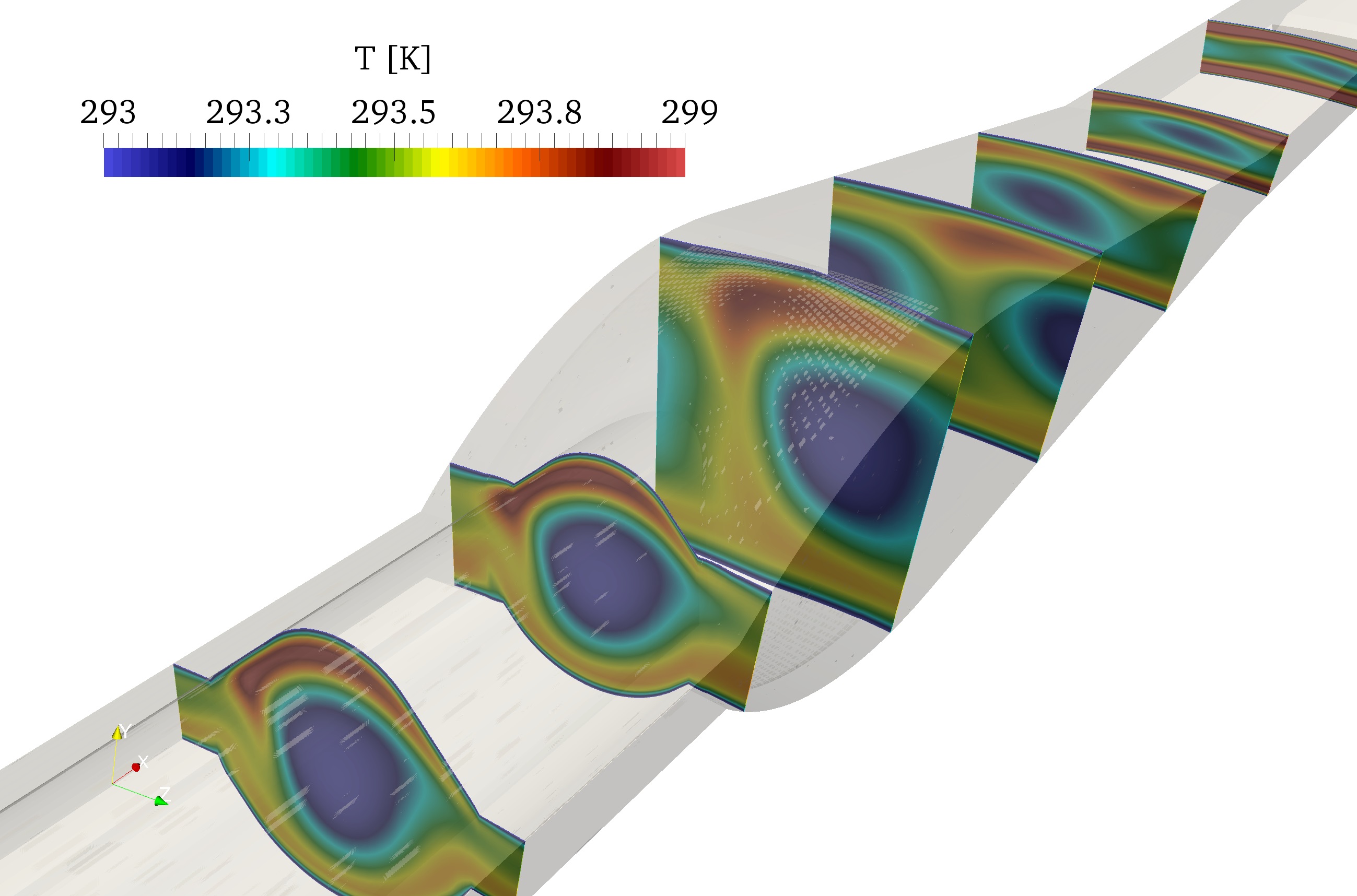

Temperature distribution in a portion of a rotating extrusion die.

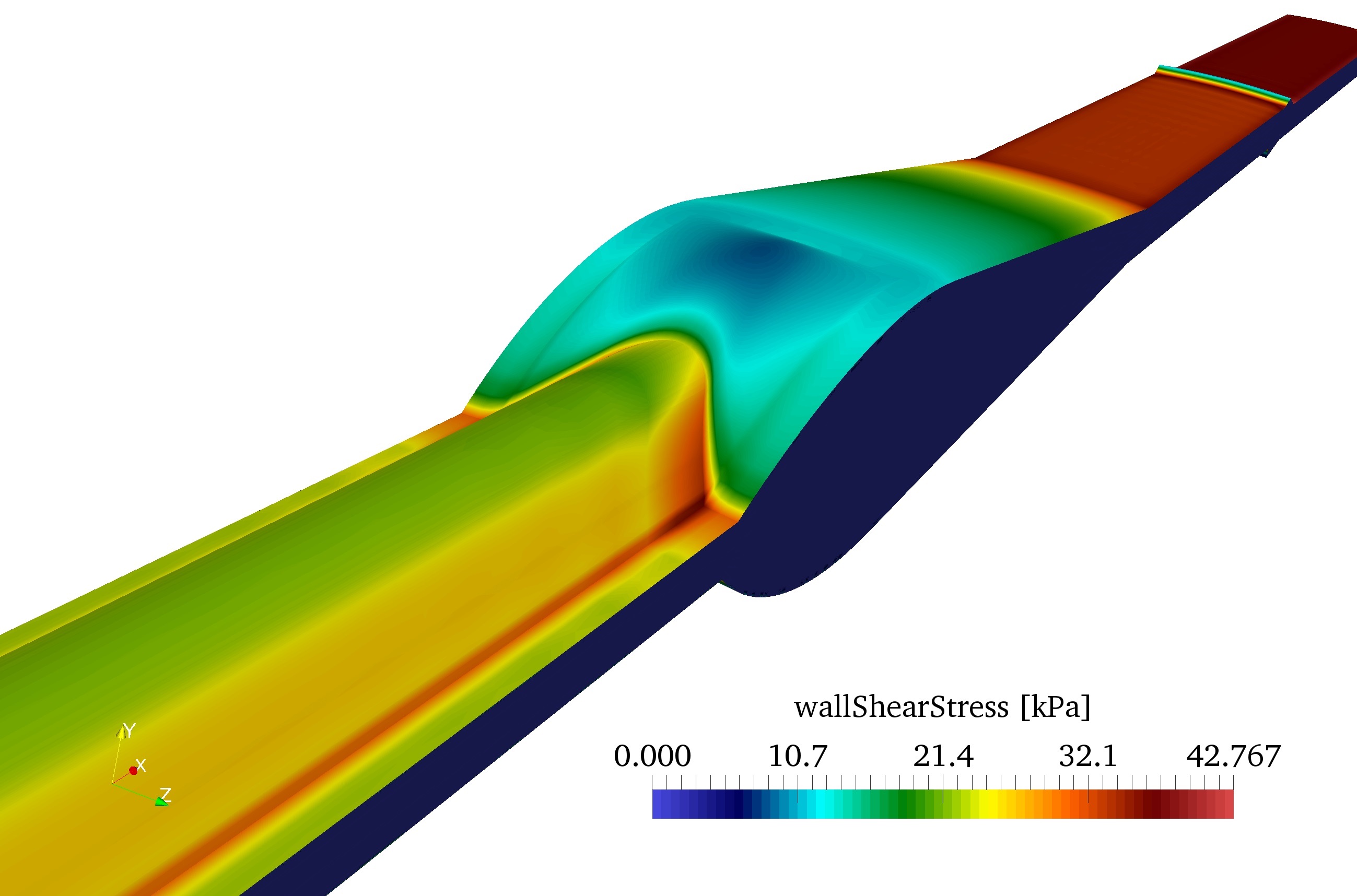

Wall shear stress distribution in a portion of a rotating extrusion die.

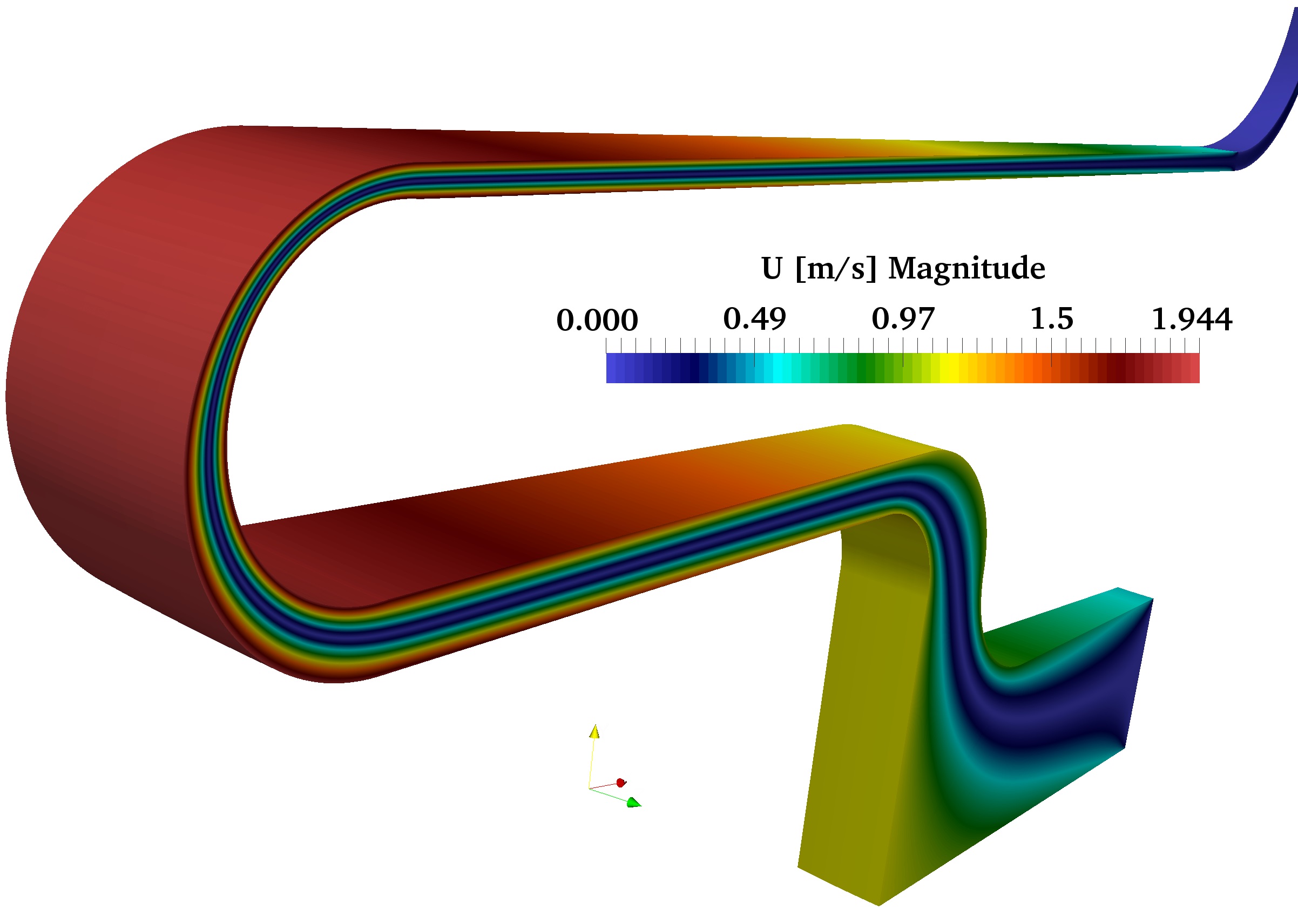

Velocity distribution in a portion of a counter-rotating extrusion die.

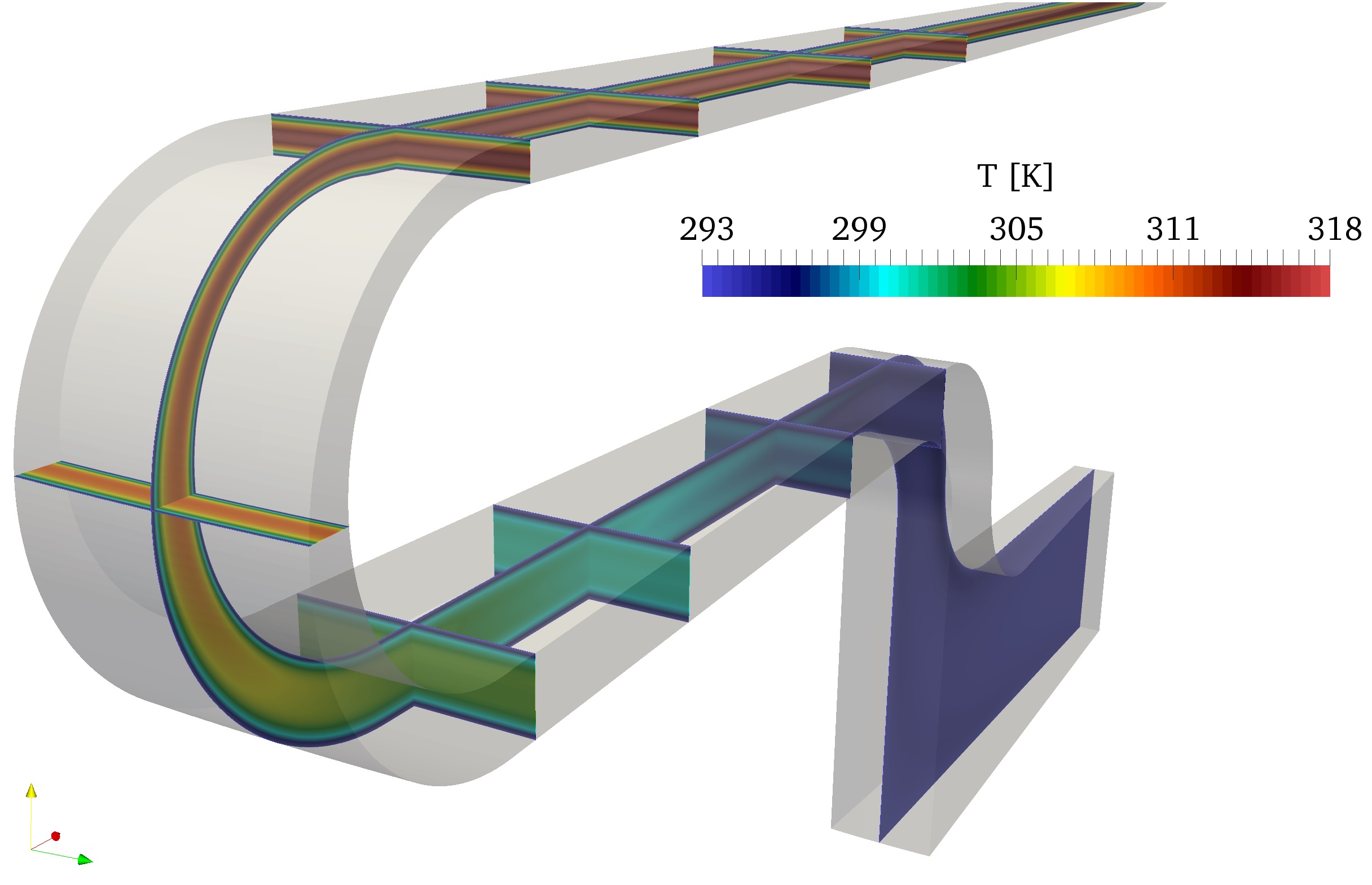

Temperature distribution in a portion of a counter-rotating extrusion die.

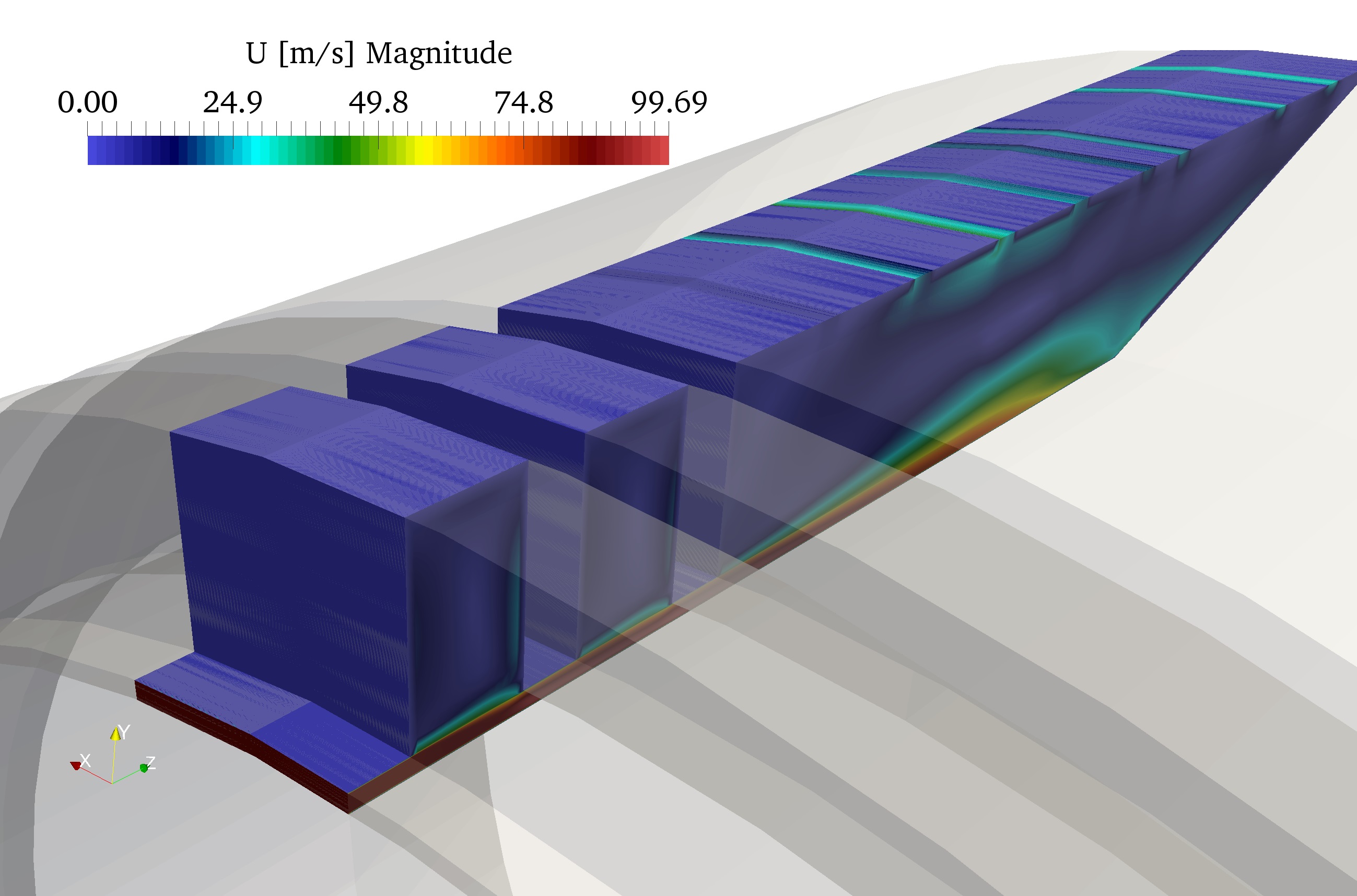

Air velocity distribution in a portion of a pipe extrusion die.
